Electronics enclosure with corner bosses
- Forge engine (B-rep, STL / OBJ / STEP-ready)
- Automatic QC 10/10
- Published Oct 3, 2026
Make it yours
Build this runs the exact brief below and gives you the STL / OBJ in about a minute. Change it opens the generator with the brief in the box so you can edit a dimension first. Free, no account.
The prompt

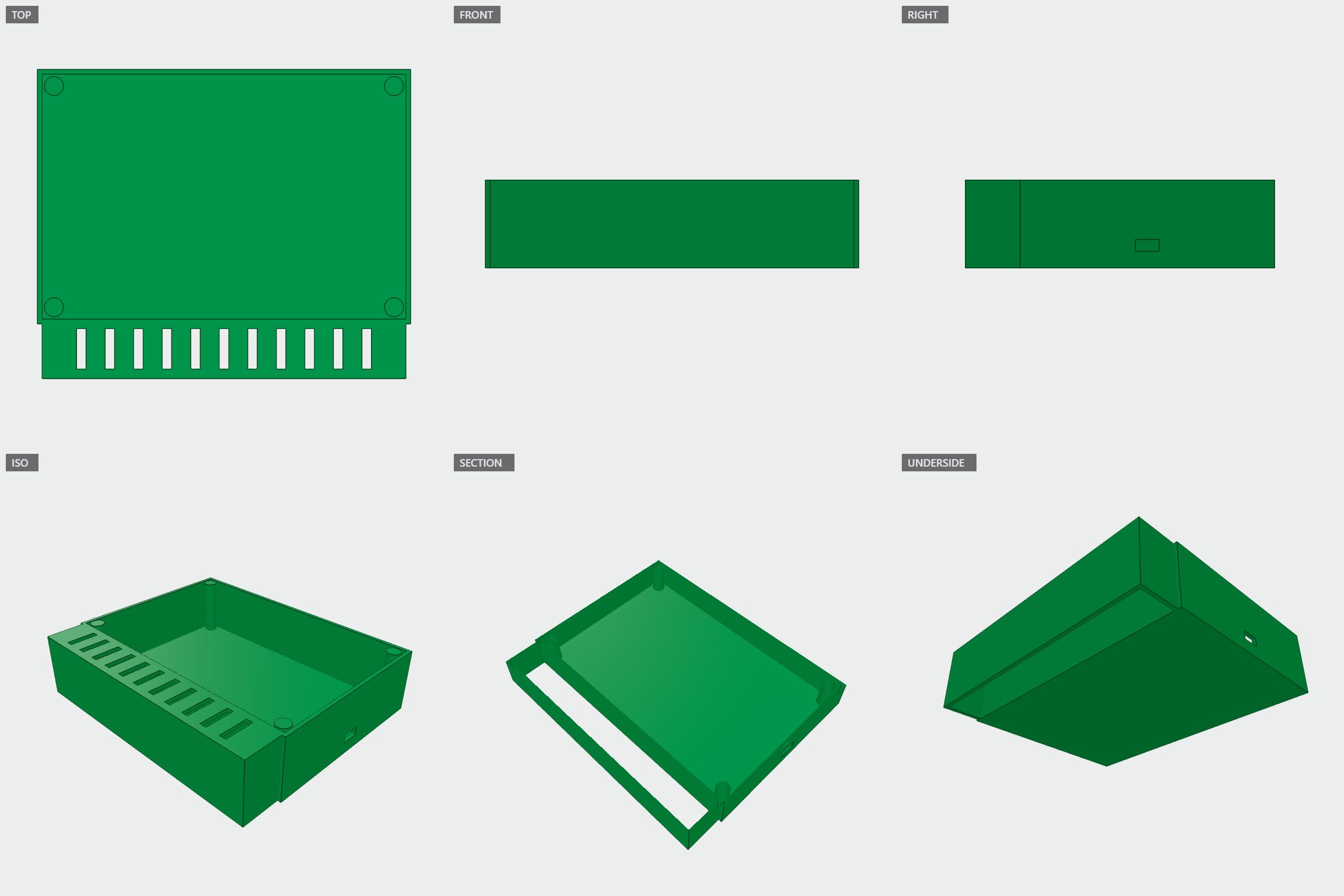

Rectangular enclosure base, 153x103x35mm internal, 2mm walls. Add 8mm solid mounting bosses in the four inside corners. Attached to the top outer edge, add a secondary 153x25mm compartment with a slatted grill top. Create a 10x5mm cutout on the right side wall.
This is the one-paragraph brief the generator built from: dimensions in millimetres, features named, nothing else. Writing yours the same way is the quickest route to a first-time build — see the prompt contract.
